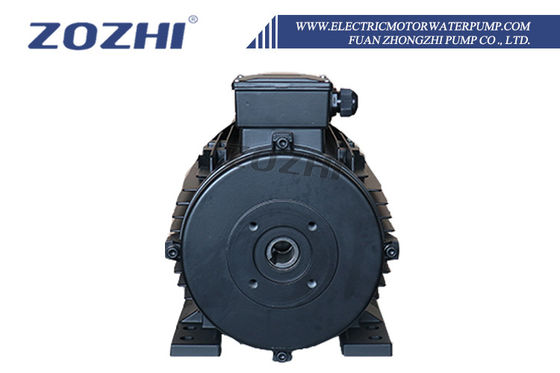

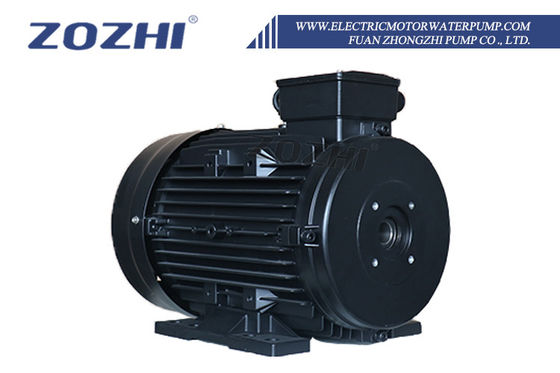

HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing

  • HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing
  • HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing
  • HS Series Hollow Shaft Motor for High Pressure Washer Systems with Aluminum Housing
Lugar de origem China
Marca ZOZHI
Certificação CE
Número do modelo HS112M2-4
Quantidade de ordem mínima 10
Preço 168usd/pcs
Detalhes da embalagem CTNS+palete
Tempo de entrega 14days
Termos de pagamento T/T
Habilidade da fonte 10000PCS/30 dias
Detalhes do produto
atual 1.5a Fase 3 Fase
Impulsor Impulsor de latão Temperatura média 5-50℃
Tensão 220/380 V Tipo de bomba Centrífuga
tipo Motor assíncrono Cor Especificações do cliente
Função Massagem, Para banheira Pressão Alta Pressão
Modelo HS112M2-4 OEM Sim
Habitação Alumínio Poder 5.5KW/7.5HP
Destacar

Hollow shaft motor aluminum housing

,

High pressure washer hollow shaft motor

,

HS series hollow shaft motor
Deixe um recado
Descrição de produto
HS Series Hollow Shaft Motor for High Pressure Washer Systems
The HS Series Hollow Shaft Motor is engineered specifically for high-pressure cleaning systems, industrial washing equipment, and pump drive applications. Featuring a direct coupling structure between motor and pump, this design reduces overall machine footprint while enhancing installation efficiency in space-constrained industrial environments.
Key Features & Benefits
  • Direct coupling structure minimizes overall system size
  • Improved installation efficiency for compact industrial spaces
  • Available in single-phase and three-phase configurations
  • High efficiency operation with up to 90% energy efficiency
  • Robust protection ratings for humid environments
  • Suitable for continuous duty operation
  • Low vibration performance for stable long-term operation
Technical Specifications
Parameter Specification
Power Range 0.37kW - 30kW
Speed 880 - 2920 RPM
Protection Rating IP54 / IP55
Efficiency Up to 90%
Duty Type S1 Continuous Duty
Voltage 220V - 400V
Insulation Class F
Application Areas: High-pressure washer systems, industrial cleaning plants, swimming pool pumps, water circulation equipment, and other applications requiring reliable, continuous operation in demanding environments.
Standards & Compliance
Built according to IEC standards, the HS series motors support IE1, IE2, and IE3 efficiency classes. Available with IP44, IP54, and IP55 protection ratings, along with B/F/H insulation classes, making them ideal for humid conditions and continuous-duty industrial applications.
Operating Conditions
Designed for S1 continuous operation with an ambient temperature range from -15℃ to 40℃, ensuring reliable performance across various industrial environments.
