RECS-020T Electronic Centrifugal Switch with 0-70℃ Temperature Range 2S ON/2S OFF MAX Frequency and 1 Million Cycle Lifespan

  • RECS-020T Electronic Centrifugal Switch with 0-70℃ Temperature Range 2S ON/2S OFF MAX Frequency and 1 Million Cycle Lifespan
  • RECS-020T Electronic Centrifugal Switch with 0-70℃ Temperature Range 2S ON/2S OFF MAX Frequency and 1 Million Cycle Lifespan
Lugar de origem CHINA
Marca ZOZHI
Certificação CE,CCC,ISO9001
Número do modelo Recs-205p
Quantidade de ordem mínima 2 peças
Preço USD12piece
Detalhes da embalagem Caso CTNS/Veneer
Tempo de entrega 14 dias de trabalho
Termos de pagamento T/t, l/c
Habilidade da fonte 10000 peças por 30 dias

Contacte-me para amostras grátis e cupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Se você tiver alguma dúvida, oferecemos ajuda on-line 24 horas por dia.

x
Detalhes do produto
Temperatura 0-70℃ Certificação CE
Corrente máxima 60A/3S Frequência de interruptor 2s on/2s de max
Tensão 115/230V
Destacar

0-70℃ Temperature Electronic Centrifugal Switch

,

2S ON/2S OFF MAX Frequency ECS

,

1 Million Cycle Lifespan Motor Centrifugal Switch
Deixe um recado
Descrição de produto

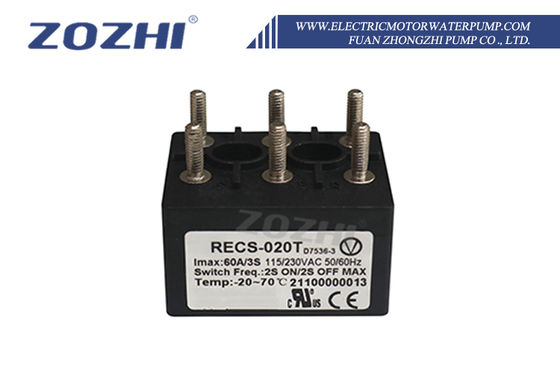

RECS-020T Electronic Centrifugal Switch Motor Accessories
Electronic centrifugal switch designed for fans and blowers. This solid-state replacement eliminates common mechanical switch failures while providing enhanced reliability and performance.
RECS-020T Electronic Centrifugal Switch with 0-70℃ Temperature Range 2S ON/2S OFF MAX Frequency and 1 Million Cycle Lifespan 0
Basic Specifications
Model Number RECS-020T
Brand Name ZOZHI
Imax 60A/3S
Rated Volt 115/230V
Temp 0-70℃
Frequency 50/60Hz
Material Plastic
Size 5.4*4.2*3.5cm
Switch Frequency 2S ON/2S OFF MAX
Product Overview
Traditional single-phase AC motors use mechanical centrifugal switches that suffer from tolerance build-up, mechanical fatigue, vibration, and electrical sparking. Our Electronic Centrifugal Switch (ECS) provides a reliable solid-state alternative that monitors speed, voltage/current, and phase to precisely control switching operations.
Key Features
  • Compact design with small package size
  • Exceptional durability with 1 million cycle lifespan
  • Universal compatibility with auto-matching for different motors
  • Wide voltage range: 115V (90V-137V) or 230V (198V-264V)
  • 50Hz/60Hz operation capability
  • Silent operation with no switching noise or contact trembling
  • High compatibility with both general-purpose and application-specific motors
  • Simple installation and maintenance, fits standard motor frames
  • Epoxy resin or silicone rubber sealed construction resists dirt, dust, moisture, and vibration
  • Automatic starting capacitor discharge
  • Certified to ROHS, CE, and UL standards
Technical Specifications
Parameter Value Unit Package (mm)
Rated Voltage 115V/230V V AC P: 72L×31W×23H
S: 52L×50W×24H
C: CAP Case 46Dia×86L
Max. Start Peak current (20ms, TC=25℃) 100A (RECS-105/205)
200A (RECS-120/220)
400A (RECS-140/240)
600A (RECS-160/260)		 A
Max. Start Peak current (3.0S, TC=25℃) 30A (RECS-105/205)
60A (RECS-120/220)
120A (RECS-140/240)
180A (RECS-160/260)		 A
Initial switch-on delay time 80 mS
Restart delay time (TC=25℃) 5 S
ON/OFF Frequency 0.2 Cycle/S
Ambient air temperature 0-70 ℃
Dielectric strength (between case and lines) ≥2500 V DC
RECS-020T Electronic Centrifugal Switch with 0-70℃ Temperature Range 2S ON/2S OFF MAX Frequency and 1 Million Cycle Lifespan 1
Model Specifications
Model Type Volt Range Max peak current Imax(3s) Power Range
RECS-205P 160-264VAC 30A Ima≤15A 0-550W
RECS-220P 160-264VAC 60A Ima≤35A 600-2200W
RECS-240P 160-264VAC 120A Ima≤75A 2200-4300W
RECS-105P 85-132VAC 30A Ima≤15A 0-330W
RECS-120P 85-132VAC 60A Ima≤35A 300-1100W
RECS-140P 85-132VAC 120A Ima≤75A 1100-2200W
RECS-020T 85-264VAC 60A Ima≤35A 110V 300-1100W
220V 600-2200W
