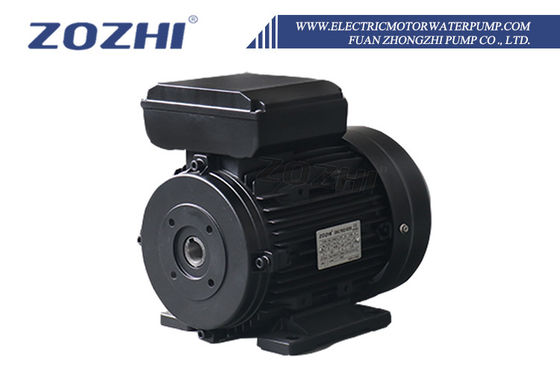

High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium

  • High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium
Lugar de origem CHINA
Marca ZOZHI
Certificação CE,CCC,ISO9001
Número do modelo HSL112M2-4
Quantidade de ordem mínima 2 peças
Preço USD179piece
Detalhes da embalagem Caso CTNS/Veneer
Tempo de entrega 14 dias de trabalho
Termos de pagamento T/t, l/c
Habilidade da fonte 10000 peças por 30 dias

Contacte-me para amostras grátis e cupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Se você tiver alguma dúvida, oferecemos ajuda on-line 24 horas por dia.

x
Detalhes do produto
Destacar

5.5HP single phase induction motor

,

low noise AC electric motor

,

aluminium enclosed hollow shaft motor
Deixe um recado
Descrição de produto
High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium
Product Description
High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 0 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 1 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 2 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 3 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 4 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 5 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 6 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 7 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 8 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 9
Specifications
Brand Name ZOZHI
Type Asynchronous Motor
Phase Single phase
Frequency 50hz/60hz
Efficiency IE 1
Protection class IP55
Certification CE/ISO9001
Housing Aluminium
Insulation Class ClassF
Duty S1 (continuous)
Motor Bearing C&U
Flange Size 87/61mm
Overall Dimension
High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 10 High Efficiency 5.5HP 4KW Single Phase 1400RPM AC Electric Induction Motor Low Noise 380V 60HZ Enclosed 220V Aluminium 11
Frame Size Specifications
Frame Size Flange Frame M N S A AC B H HC L K
90L 75/87 90/61 7 140 238 125 90 220 270 9.5
100L 75/87 90/61 9 160 255 140 100 240 315 11
112M 75/87 90/61 9 216 326 140 132 265 330 11
132S 75/87 90/61 9 216 326 140 132 320 370 12
132M 75/87 90/61 9 216 326 178 132 320 409 12
160M 75/87 90/61 9 254 360 210 160 410 498 14.5
Technical Specifications
Single Phase 50Hz/2-pole
Frame Size Power (HP/KW) Speed (RPM) Power Factor (P.F.) Efficiency (%) Capacitor (μF) Voltage (V) Ampere (A)
HSL90L1-2 2.5HP/1.8KW 2850 0.95 65 50 230 12.7
HSL90L2-2 3HP/2.2KW 2840 0.99 72 60 400 13.4
HSL100L2 3HP/2.2KW 2850 0.96 74 85 400 15.3
Single Phase 50Hz/4-pole
Frame Size Power (HP/KW) Speed (RPM) Power Factor (P.F.) Efficiency (%) Capacitor (μF) Voltage (V) Ampere (A)
HSL90L1-4 2HP/1.5KW 1400 0.98 70 45 230 9.5
HSL100L1-4 2.5HP/1.85KW 1390 0.97 68 55 230 12.2
HSL100L2-4 3HP/2.2KW 1350 0.99 74 70 230 13.1
HSL100L3-4 3.5HP/2.6KW 1350 0.96 74 80 230 17.5
HSL112M1-4 4HP/3KW 1400 0.98 74 80 230 18.1
HSL112M2-4 5HP/3.7KW 1410 0.96 76 100 230 22
Three Phase 50Hz/2-pole
Frame Size Power (HP/KW) Speed (RPM) Power Factor (P.F.) Efficiency (%) Capacitor (μF) Voltage (V) Ampere (A)
HS90L1-2 3HP/2.2KW 2820 0.86 78 - 400 4.9
HS90L2-2 4HP/3KW 2820 0.86 78 - 400 6.6
HS90L3-2 5HP/3.7KW 2820 0.80 83 - 400 8.6
HS100L1-2 4HP/3KW 2840 0.83 81 - 400 7
HS100L2-2 5.5HP/4KW 2850 0.86 82 - 400 8.5
HS100M1-2 5.5HP/4KW 2830 0.84 82 - 400 9.4
HS112M2-2 7.5HP/5.5KW 2840 0.85 83 - 400 11.7
HS132S1-2 7.5HP/5.5KW 2890 0.86 84 - 400 11.6
HS132S2-2 10HP/7.5KW 2900 0.86 84 - 400 15.4
HS132M1-2 15HP/11KW 2920 0.88 86 - 400 21.8
HS132M2-2 20HP/15KW 2920 0.88 86 - 400 29.3
HS160M1-2 20HP/15KW 2920 0.87 88 - 400 28
HS160M2-2 25HP/18.5KW 2920 0.87 89 - 400 34
HS160M3-2 30HP/22KW 2920 0.87 89.2 - 400 41
Three Phase 50Hz/4-pole
极速赛车开奖直播
Frame Size Power (HP/KW) Speed (RPM) Power Factor (P.F.) Efficiency (%) Capacitor (μF) Voltage (V) Ampere (A)
HS90L1-4 2HP/1.5KW 1400 0.82 78 - 400 3.4
HS90L2-4 3HP/2.2KW 1400 0.79 77 - 400 5.4
HS90L3-4 3.5HP/2.6KW 1400 0.80 78 - 400 7.4
HS100L1-4 3HP/2.2KW 1400 0.80 81 - 400 5.1
HS100L2-4 4HP/3KW 1410 0.80 81 - 400 6.9
HS100L3-4 5.5HP/4KW 1420 0.80 82 - 400 9.4
HS100M1-4 6HP/4.4KW 1420 0.82 83 - 400 10
HS112M1-4 5.5HP/4KW 1420 0.80 83 -
