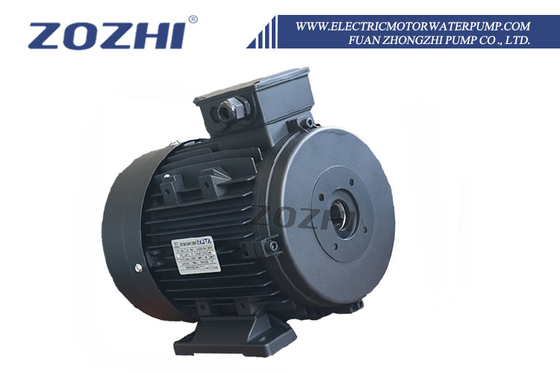

Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump

  • Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump
  • Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump
Place of Origin CHINA
Marca ZOZHI
Certificação CE,CCC,ISO9001
Model Number HS112M2-4
Minimum Order Quantity 2pieces
Preço USD155-170piece
Packaging Details CTNS/Veneer case
Delivery Time 14work days
Payment Terms T/T, L/C
Habilidade da fonte 10000 peças por 30 dias

Contacte-me para amostras grátis e cupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Se você tiver alguma dúvida, oferecemos ajuda on-line 24 horas por dia.

x
Detalhes do produto
Deixe um recado
Descrição de produto



Product Description

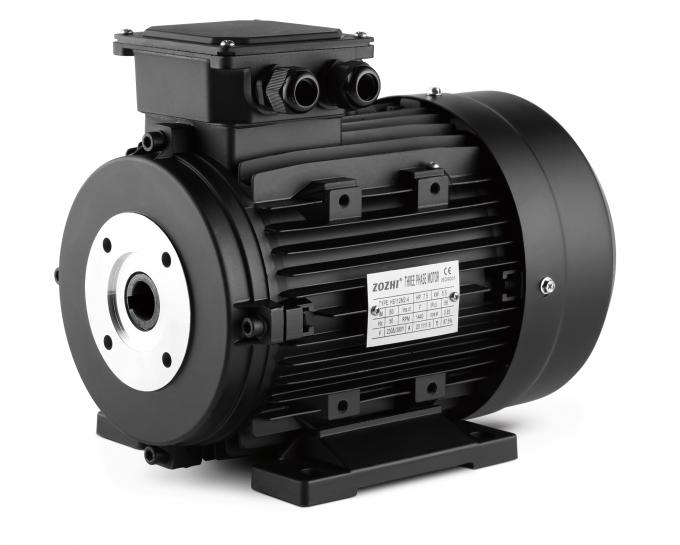

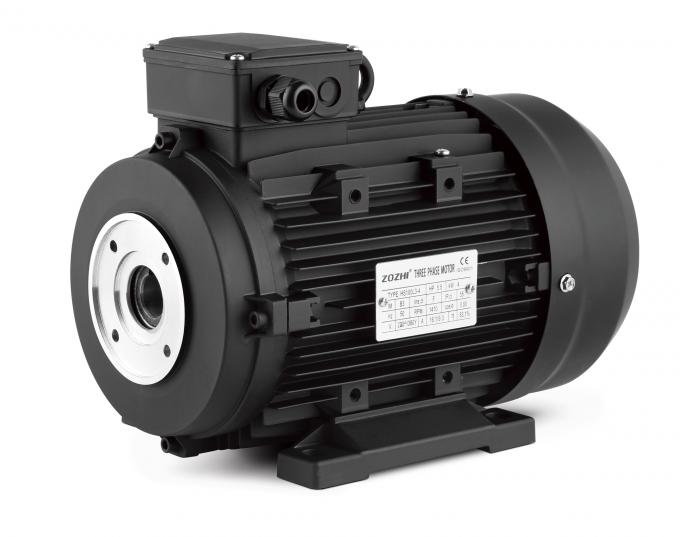

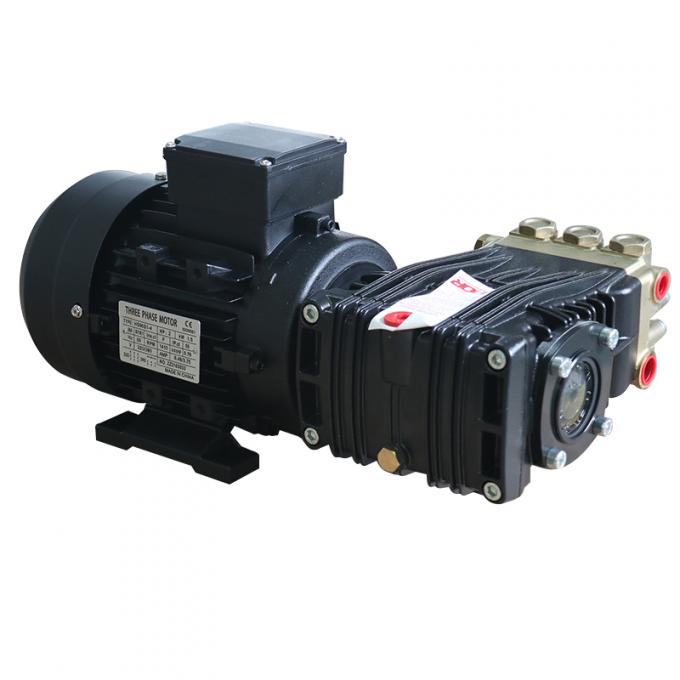

ASYNCHRONOUS HOLLOW SHAFT MOTOR


The direct coupling between motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the overall size of the machine and at the same time provides a totally reliable and cost-efficient solution
Product name
Hollow shaft electric motor HS112M2-4
Motor housing
Aluminum
Power
5.5KW/7.5HP
Installation
B3 Hollow shaft 24mm
Flange size
B3 87/61mm or 75/90mm
Bearing
C&U
Shaft
C#45
Insulation
Class F
Protection
IP55
Voltage/Frequency
Three phase 380V
OR other request
Speed
1400rpm
Application
Interpump
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 0
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 1

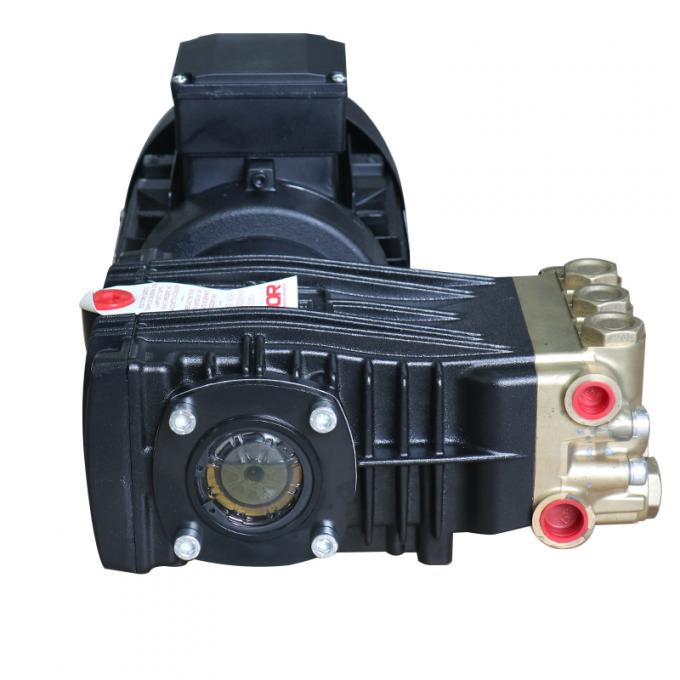

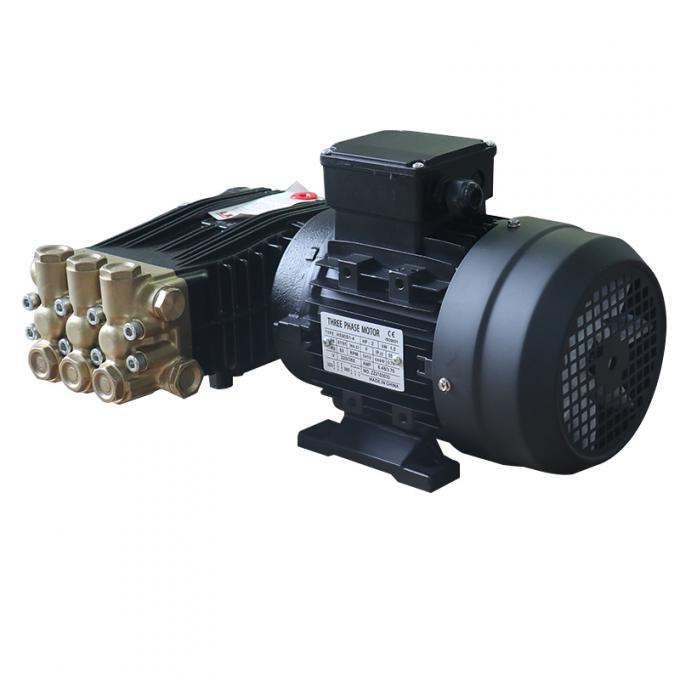

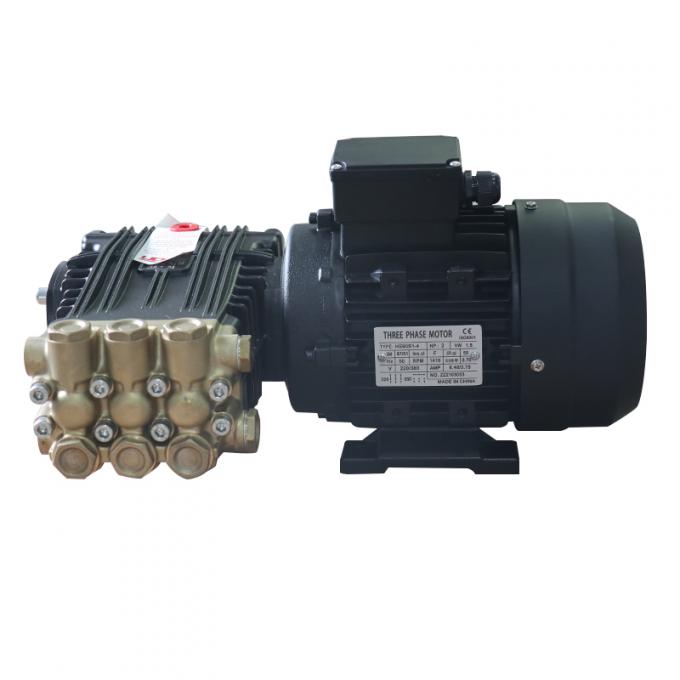

Application
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 2
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 3
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 4
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 5

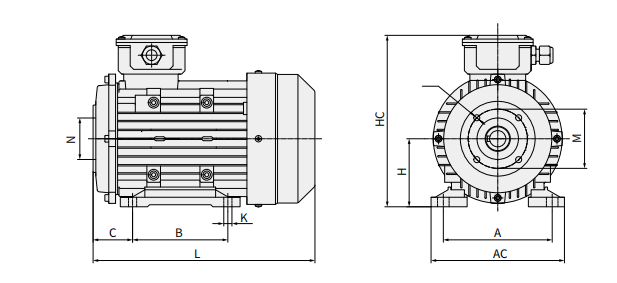

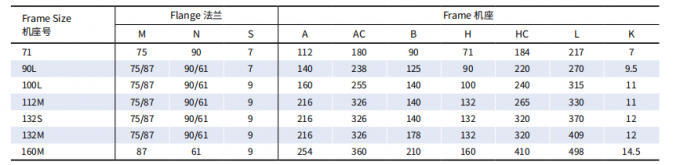

Specification
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 6
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 7
FRAME
POWER
KW HP
RPM
COSφ
P.F.
EFF.%
CAPACITOR
(UF)
VOL
AMPEREA
Single-Phase 4 Poles 3000Rpm 50Hz
711-4
0.25
0.35
1360
0.91
57
10
230
2.1
712-4
0.37
0.5
1380
0.94
65
16
230
2.6
90L1-4
1.5
2
1400
0.98
70
45
230
9.5
100L1-4
1.85
2.5
1390
0.97
68
55
230
12.2
100L2-4
2.2
3
1350
0.99
74
70
230
13.1
100L3-4
2.6
3.5
1350
0.96
74
80
230
17.5
112M1-4
3
4
1400
0.98
74
80
230
18.1
112M2-4
3.7
5
1410
0.96
76
100
230
22
Three-Phase 4 Poles 1500Rpm 50Hz
711-4
0.25
0.35
1370
0.73
64
400
0.8
712-4
0.37
0.5
1350
0.74
68
400
1.1
713-4
0.55
0.75
1350
0.75
66
400
1.6
90L1-4
1.5
2
1400
0.82
78
400
3.4
90L2-4
2.2
3
1400
0.79
77
400
5.4
90L3-4
2.6
3.5
1400
0.8
78
400
7.4
100L1-4
2.2
3
1400
0.8
81
400
5.1
100L2-4
3
4
1410
0.8
81
400
6.9
100L3-4
4
5.5
1420
0.8
82
400
9.4
100M1-4
4.4
6
1420
0.82
83
400
10
112M1-4
4
5.5
1420
0.8
83
400
9
112M2-4
5.5
7.5
1430
0.82
84
400
12.1
112M3-4
6.2
8.5
1425
0.82
84
400
13.5
112L-4
7
9.5
1430
0.8
85
400
13.8
132S1-4
5.5
7.5
1430
0.82
84
400
11.7
132S2-4
7.5
10
1430
0.84
84
400
15.4
132M1-4
9.2
12.5
1430
0.9
85
400
17.8
132M2-4
11
15
1430
0.9
87
400
21.3
132M3-4
12.5
17
1430
0.88
84
400
26
160M1-4
15
20
1450
0.86
89
400
29
160M2-4
18.5
25
1450
0.86
90
400
34

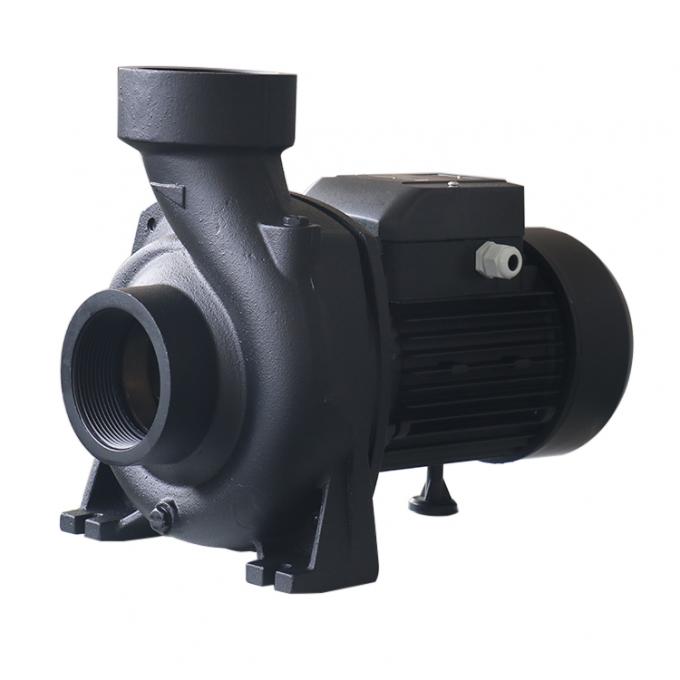

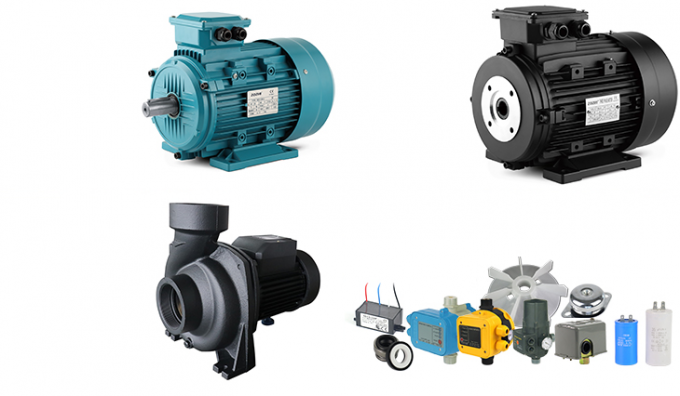

Other Products
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 8
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 9
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 10
Three-Phase 5.5KW 7.5HP Electric AC Motor 380V 50HZ 1500 RPM Explosion-Proof Enclosed Aluminium Housing 110V For AR Pump 11

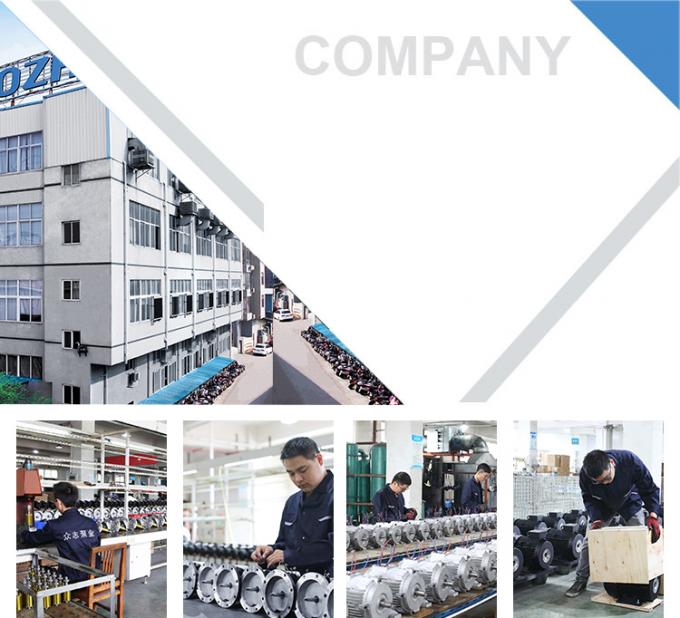

Company Profile
