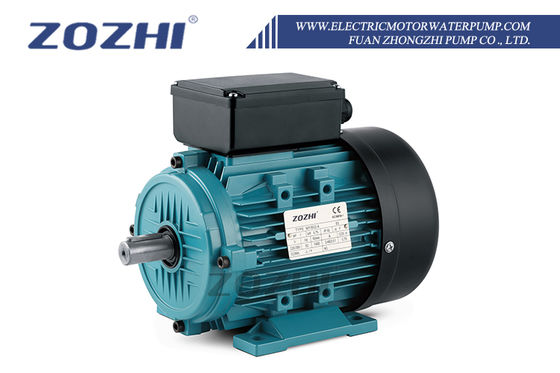

Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz

  • Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz
Lugar de origem China
Marca ZOZHI
Certificação CE,CCC,ISO9001
Número do modelo MY802-4
Quantidade de ordem mínima 2 peças
Preço USD61.8piece
Detalhes da embalagem Caso CTNS/Veneer
Tempo de entrega DIAS 14WORK
Termos de pagamento T/T, L/C
Habilidade da fonte 10000 peças por 30 dias

Contacte-me para amostras grátis e cupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Se você tiver alguma dúvida, oferecemos ajuda on-line 24 horas por dia.

x
Detalhes do produto
saída 1 CV / 0,75 kW temperatura ambiente 40°C
Velocidade 3000 RPM Frequência 50/60 Hz
Material do estator Fio de cobre de 100% Instalação B3, B5, B14, B34, B35
Função 1 ano Tipo de Montagem Pés
Tamanho da flange B3 Nível de ruído 60 dB
Isolamento Classe F Proteger a característica Totalmente fechado
Tensão 220V-240V
Deixe um recado
Descrição de produto
Product Description
MY series is superior motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields where superior quality and reliability is demanded.
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 0
Type
MY802-4
Phase
Single phase
Power
1HP/0.75KW
Frequency
50hz/60hz
Voltage
220V~230V
Speed
1500RPM
Protection class
IP55
Duty
S1 (continuous)
Mounting
B3/B14/B5/B34/B35
Specification
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 1
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 2
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 3
FRAME
SIZE
MOUNTING DIMENSIONS(MM)
OVERALL DIMENSIONS(MM)

IMB14
IMB5
A B C D E F G H K
M N P R S T
M N P R S T
AB AC AD HD L
56
90 71 36 9 20 3 7.2 56 5.8
65 50 80 0 M5 2.5
100 80 120 0 7 3.0
110 108 100 156 198
63
100 80 40 11 23 4 8.5 63 7
75 60 90 0 M5 2.5
115 95 140 0 10 3.0
120 119 110 173 216
71
112 90 45 14 30 5 11 71 7
85 70 105 0 M6 2.5
165 130 200 0 12 3.5
132 137 117 188 250
80
125 100 50 19 40 6 15.5 80 10
100 80 120 0 M6 3.0
165 130 200 0 12 3.5
160 155 137 217 278
90S
140 100 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 145 235 296
90L
140 125 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 145 235 322
100L
160 140 63 28 60 8 24 100 12
130 110 160 0 M8 3.5
215 180 250 0 15 4.0
198 194 153 253 384


MODEL
Output
Voltange
Current
Full Speed
Eff@Load
Full-Load Power Factor
Ist/In
Break Down Torque
Approx. Weight
(HP) (KW)
(V)
IN(A)
(RPM)
(%)

(A)
TST/TN TMAX/TN
KG
MY561-2
0.12 0.09
230
0.75
2800
56
0.92
3
0.5 1.7
2.5
MY562-2
0.16 0.12
230
0.94
2800
60
0.92
4
0.5 1.7
3
MY631-2
0.25 0.18
230
1.13
2800
65
0.92
5
0.4 1.7
4.2
MY632-2
0.34 0.25
230
1.79
2800
66
0.92
7
0.4 1.7
4.5
MY711-2
0.5 0.37
230
2.61
2800
67
0.92
10
0.35 1.7
5.7
MY712-2
0.75 0.55
230
3.71
2800
70
0.92
15
0.35 1.7
6.7
MY801-2
1 0.75
230
4.93
2800
72
0.92
20
0.33 1.7
9.3
MY802-2
1.5 1.1
230
6.71
2800
75
0.95
30
0.33 1.7
10.6
MY90S-2
2 1.5
230
9.03
2800
76
0.95
40
0.3 1.7
13
MY90L-2
3 2.2
230
13.08
2800
77
0.95
65
0.3 1.7
16
MY100L-2
4 3
230
17.8
2800
79
0.95
92
0.3 1.7
25
MY561-4
0.08 0.06
230
0.58
1400
50
0.9
2
0.45 1.7
2.8
MY562-4
0.12 0.09
230
0.83
1400
52
0.9
3
0.45 1.7
3.4
MY631-4
0.16 0.12
230
1.01
1400
57
0.9
3.5
0.4 1.7
4
MY632-4
0.25 0.18
230
1.33
1400
59
0.9
5
0.4 1.7
4.5
MY711-4
0.34 0.25
230
1.93
1400
61
0.92
7
0.35 1.7
5.5
MY712-4
0.5 0.37
230
2.82
1400
62
0.92
10
0.35 1.7
6..5
MY801-4
0.75 0.55
230
4.07
1400
64
0.92
15
0.35 1.7
9.1
MY802-4
1 0.75
230
5.21
1400
68
0.92
20
0.32 1.7
10.4
MY90S-4
1.5 1.1
230
7.13
1400
71
0.95
30
0.32 1.7
13
MY90L-4
2 1.5
230
9.4
1400
73
0.95
40
0.3 1.7
16
MY100L1-4
3 2.2
230
13.6
1400
76
0.95
65
0.3 1.7
22
MY100L2-4
4 3
230
18
1400
77
0.95
88
0.3 1.7
29
Using Effects
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 4
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 5
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 6
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 7
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 8
Packing&Delivery
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 9
Company Profile
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 10
Fuan zhongzhi pump Co.,Ltd
Established in 2006,Fuan zhongzhi pump Co.,Ltd trademark registration "ZOZHI" has been a modernized private enterprise with scientific research,the production, sales and service . specialized in manufacturing various types of pumps,such as peripheral,centrifugal,jet,deep well,sewage pump etc,high efficiency AC motor, alternator and diesel generator.

Zhongzhi pump are widely used in shallow and deep well pumping,pipeline booster,water tower booster,garden irrigation, agriculture irrigation and aquaculture drainage etc.

Zhongzhi motor can be used for general driving,such as household appliance,pumps,fan and recording meters etc.

Zhongzhi generator fully applied to communication systems, data centers, mining, power, highways, engineering companies, financial systems, hotels, railways, airports ,commercial buildings, hospitals, factories, etc,and with strategic partners to establish a global service system. Our production of generator sets have become the most number of hotels, buildings and industrial and mining enterprises of backup power.

Zhongzhi products popular in more than 70 countries in Europe,America, the Middle East, Africa, Southeast Asia and other.

Motivated by our slogan“Solidarity,Exploration,Honest,Faith”, we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.

FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
Single-Phase 1hp 0.75kw 220V 1500rpm Induction Motor for Enclosed Air Compressor Versatile for Industrial Applications 60Hz 11
