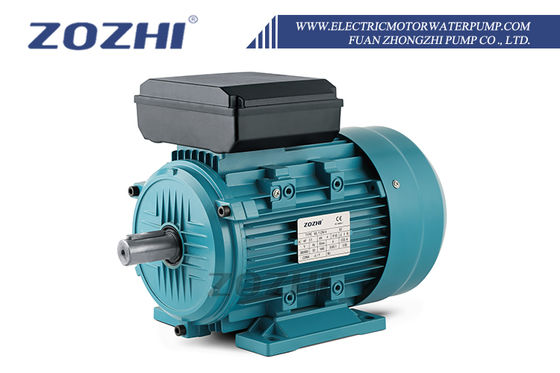

Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor

  • Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor
Lugar de origem China
Marca ZOZHI
Certificação CE,CCC,ISO9001
Número do modelo ML112M-4
Quantidade de ordem mínima 2 peças
Preço USD130piece
Detalhes da embalagem Caso CTNS/Veneer
Tempo de entrega DIAS 14WORK
Termos de pagamento T/T, L/C
Habilidade da fonte 10000 peças por 30 dias

Contacte-me para amostras grátis e cupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

Se você tiver alguma dúvida, oferecemos ajuda on-line 24 horas por dia.

x
Detalhes do produto
Output 5.5HP / 4KW Ambient Temperature 40°C
Speed 1500 RPM Frequency 50/60Hz
Stator Material 100% Copper Wire Mounting B3,B5,B14,B34,B35
Duty 1year Mounting Type Footed
Flange Size B3 Noise Level 60dB
Insulation Class F Protect Feature Totally Enclosed
Voltage 220V-240V
Deixe um recado
Descrição de produto
Product Description
ML series is superior motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields where superior quality and reliability is demanded.
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 0
Type
ML112M-4
Phase
Single phase
Power
5.5HP/4KW
Frequency
50hz/60hz
Voltage
220V~230V
Speed
1500RPM
Protection class
IP55
Mounting
B3/B14/B5/B34/B35
Specification
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 1
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 2
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 3
FRAME
SIZE
MOUNTING DIMENSIONS(MM)
OVERALL DIMENSIONS(MM)

IMB14
IMB5
A B C D E F G H K
M N P R S T
M N P R S T
AB AC AD HD L
63
100 80 40 11 23 4 8.5 63 7
75 60 90 0 M5 2.5
115 95 140 0 10 3.0
120 119 118 181 231
71
112 90 45 14 30 5 11 71 7
85 70 105 0 M6 2.5
130 110 160 0 10 3.5
132 137 125 196 250
80
125 100 50 19 40 6 15.5 80 10
100 80 120 0 M6 3.0
165 130 200 0 12 3.5
160 155 146 226 278
90S
140 100 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 151 241 322
90L
140 125 56 24 50 8 20 90 10
115 95 140 0 M8 3.0
165 130 200 0 12 3.5
175 172 151 241 352
100L
160 140 63 28 60 8 24 100 12
130 110 160 0 M8 3.5
215 180 250 0 15 4.0
198 194 162 262 414
112M
190 140 70 28 60 8 24 112 12
130 110 160 0 M8 3.5
215 180 250 0 15 4.0
220 217 186 298 424


MODEL
Output
Voltange
Current
Full Speed
Eff@Load
Full-Load Power Factor
Ist/In
Break Down Torque
Approx. Weight
(HP) (KW)
(V)
IN(A)
(RPM)
(%)

(A)
TST/TN TMAX/TN
KG
ML631-2
0.25 0.18
230
1.43
2800
60
0.92
7
1.8 1.8
3.9
ML632-2
0.34 0.25
230
1.91
2800
63
0.92
10
1.8 1.8
4.3
ML711-2
0.5 0.37
230
2.73
2800
67
0.92
16
2.3 1.8
5.8
ML712-2
0.75 0.55
230
3.4
2800
73
0.95
21
2.5 1.8
6.8
ML801-2
1 0.75
230
4.7
2800
73
0.95
30
2.5 1.8
9.6
ML802-2
1.5 1.1
230
7.02
2800
75
0.95
40
2.5 1.8
11.3
ML90S-2
2 1.5
230
9.44
2800
76
0.95
55
2.5 1.8
13
ML90L-2
3 2.2
230
13.67
2800
77
0.95
70
2.5 1.8
16
ML100L-2
4 3
230
18.2
2800
79
0.95
100
2.2 1.8
26
ML112M-2
5.5 4
230
22.5
2800
78
0.95
120
1.8 1.8
-
ML631-4
0.16 0.12
230
1.24
1400
55
0.9
6
1.8 1.8
4.1
ML632-4
0.25 0.18
230
1.43
1400
56
0.9
8
1.8 1.8
4.9
ML711-4
0.34 0.25
230
1.99
1400
62
0.92
12
2.5 1.8
5.8
ML712-4
0.5 0.37
230
2.81
1400
65
0.92
16
2.5 1.8
6.8
ML801-4
0.75 0.55
230
3.6
1400
69
0.92
21
2.5 1.8
9.1
ML802-4
1 0.75
230
5.22
1400
71
0.95
25
2.5 1.8
10.4
ML90S-4
1.5 1.1
230
6.9
1400
72
0.95
40
2.5 1.8
13
ML90L-4
2 1.5
230
9.3
1400
74
0.95
50
2.5 1.8
16
ML100L1-4
3 2.2
230
13.9
1400
76
0.95
80
2.5 1.8
26
ML100L2-4
4 3
230
17.6
1400
78
0.95
100
2.5 1.8
31
ML112M-4
5.5 4
230
22
1400
79
0.95
130
2.5 1.8
35
Using Effects
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 4
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 5
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 6
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 7
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 8
Packing&Delivery
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 9
Company Profile
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 10
Fuan zhongzhi pump Co.,Ltd
Established in 2006,Fuan zhongzhi pump Co.,Ltd trademark registration "ZOZHI" has been a modernized private enterprise with scientific research,the production, sales and service . specialized in manufacturing various types of pumps,such as peripheral,centrifugal,jet,deep well,sewage pump etc,high efficiency AC motor, alternator and diesel generator.

Zhongzhi pump are widely used in shallow and deep well pumping,pipeline booster,water tower booster,garden irrigation, agriculture irrigation and aquaculture drainage etc.

Zhongzhi motor can be used for general driving,such as household appliance,pumps,fan and recording meters etc.

Zhongzhi generator fully applied to communication systems, data centers, mining, power, highways, engineering companies, financial systems, hotels, railways, airports ,commercial buildings, hospitals, factories, etc,and with strategic partners to establish a global service system. Our production of generator sets have become the most number of hotels, buildings and industrial and mining enterprises of backup power.

Zhongzhi products popular in more than 70 countries in Europe,America, the Middle East, Africa, Southeast Asia and other.

Motivated by our slogan“Solidarity,Exploration,Honest,Faith”, we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.
FAQ

Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pump and motor in China.

Q2 Where is your factory?
Fuan city, Fujian province.

Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q4 What about delivery time?
Normally, 30 days after the receipt of payment.

Q5 About shipment?
By sea, By air and By express delivery.

Q6 About sample?
Available.
Single-Phase 5.5hp 4kw 220V Induction Motor 1500rpm Speed Versatile for Industrial Applications Enclosed for Air Compressor 11
